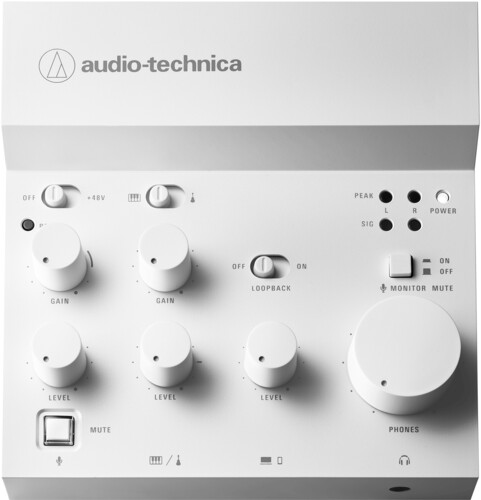

Audio Technica AT-UMX3WH Live Streaming USB Audio Mixer Interface , White

The perfect desktop audio mixer for novices and experienced users alike, the AT-UMX3 is a compact, feature-rich USB mixer that delivers high-quality sound for livestreams and other applications. Featuring a high-performance A/D converter (up to 24-bit/192 kHz) and plug-and-play operation, the AT-UMX3 lets you connect to your computer or mobile device to easily produce professional-quality mixes.

Product Features

The loopback function gives you the power to combine mic, instrument and computer audio into a single mix that’s automatically sent back to your computer for streaming. It couldn’t be easier to add background music, game sounds or other computer audio for a professional-quality stream.

The mixer comes with a USB-C to USB-A cable and USB-A to USB-C adapter for easy connection to your computer or mobile device. No drivers or software required. Simply plug your computer, mic, and instrument (if desired) into the mixer and start to create.

Start with a condenser XLR microphone like the AT2020 or a dynamic XLR microphone like the AT2040. Next, connect a guitar or keyboard. Then use the intuitive controls and your favorite ATH-M50x headphones to mix the audio from the mic and one instrument into a single stream. Your mix will be sent to your stream audience exactly as you hear it.

Compact, feature-rich livestreaming USB audio mixer provides high-quality sound for desktop audio production

Plug-and-play connectivity to computer or mobile device (no special drivers required)

High-performance A/D converter with resolution up to 24-bit/192 kHz provides crystal-clear output for voice and instruments

Loopback function makes it easy to mix mic and instrument inputs with background music, game sounds, or other audio input from a computer – and send the stereo mix back to the computer for streaming

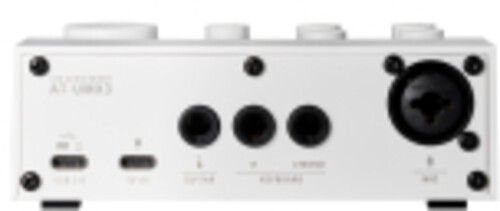

Equipped with a single mic input (XLR or ¼"), two LINE inputs for guitar and keyboard, and USB-C input for connecting to a computer

Simple, intuitive controls for independent, real-time volume adjustment of each input

Mute button enables quick muting of microphone without disrupting other audio inputs

Headphone jack with volume control lets you monitor the mix

Microphone monitor mute button allows mic audio to be muted only in the mix sent to connected headphones

Advanced noise-resistant design helps deliver clean streaming audio

Equipped with output peak, SIG, and power indicator lights

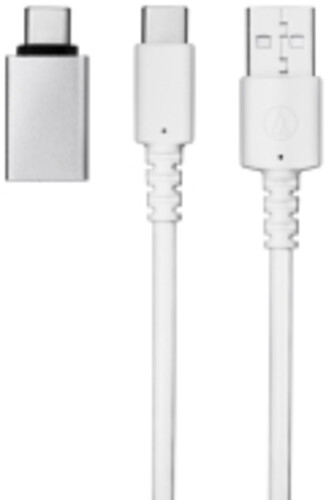

Includes a USB-C to USB-A cable and a USB-A to USB-C adapter

Input Termials - MIC: XLR/TRS combo jack LINE (GUITAR): 6.3 mm (1/4”) standard jack (Hi-Z) LINE (KEYBOARD): 6.3 mm (1/4”) standard jack, L/MONO and R USB STEREO INPUT

Ouput Terminals - HEADPHONE OUT: 3.5 mm (1/8”) stereo mini jack USB STEREO OUTPUT

USB 2.0, High Speed

Sampling Frequency - Max. 192 kHz

Bit Rate - 16 bit / 24 bit
