Product Image
Needles & Cartridges
Price: $599.99

Product Information

Brand:Audio-Technica
UPC:4961310111182
Item #: 2476645X
Available Date: 7/22/2022
Model Number: AT33PTG/2

Description & Details

AUDIO TECHNICA AT33PTG/ 2 DL MVNG COIL CART BLK/ SLV

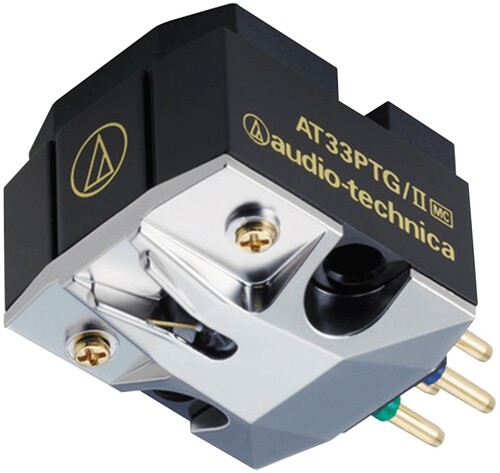

Audio Technica AT33PTG/2 Dual Moving Coil Cartridge (Black/Silver)

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1,000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.

The cartridge’s two coils provide excellent channel separation and are affixed within a strong, lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission.

Moving coil cartridge with Microlinear stylus delivers exquisite, full-range audio reproduction

Advanced tapered boron cantilever and reduced coil weight improve the audio quality, particularly in the higher frequencies

Neodymium magnet and permendur yoke dramatically enhance the magnetic energy

PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer

High-separation, wide-response dual moving coil

Strong, rigid housing limits unnecessary vibration

Precision-cast hard aluminum alloy body enhances rigidity and the signal-to-noise ratio

Frequency Response - 15-50,000 Hz

Channel Separation - 30 dB (1 kHz)

Vertical Tracking Angle - 23°

Vertical Tracking Force - 1.8-2.2 g (2.0 g standard)

Recommended Load Impedance - More than 100 ohms (when head amplifier is connected)

Stylus Shape - Microlinear

Cantilever - Gold-plated nude tapered boron

Mounting - Half Inch

Dimensions - 16.0 mm (0.63") H × 16.6 mm (0.65") W × 26.5 mm (1.04") D

Weight - 6.9 g (0.24 oz)

Non-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm × 2, 19 mm × 2); plastic protector; brush; PCOCC lead wire set
