Product Image
Needles & Cartridges
Price: $79.00

Product Information

Brand:Audio-Technica
Features: Black, Red
UPC:4961310142551
Item #: 2039693X
Available Date: 4/25/2018
Model Number: ATXP5

Description & Details

AUDIO TECHNICA ATXP5 DJ CARTRIDGE BLACK RED

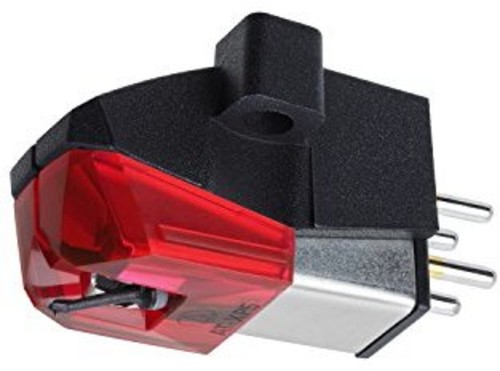

Audio Technica ATXP5 DJ Cartridge Black Red

The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

Product Features

Frequency Response: 20-18,000 Hz

Channel Separation: 20 (dB at 1 kHz)

Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)

Stylus Construction: Bonded round shank

Recommended Load Impedance: 47,000 ohms

Output: 5.5 mV (1 kHz, 5 cm/sec.)

Channel Balance: 2.0 dB (1 kHz)

Stylus Shape: 0.3 x 0.7 mil elliptical

Cantilever: Carbon fiber-reinforced ABS

Mount: Half-inch

Replacement Stylus: ATN-XP5

Coil impedance: 6.7 k ohms (1 kHz)

DC resistance: 990 ohms

Recommended load capacitance: 100 to 200 pF

Coil inductance: 1.0 H (1 kHz)

Vertical tracking angle: 20°

Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
