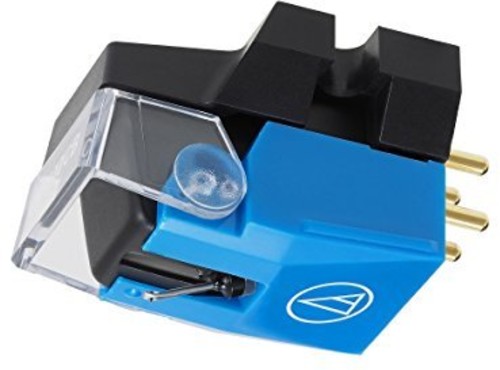

AUDIO TECHNICA VM510CB Phonograph Cartridge Phonograph cartridge, 1/2

The VM510CB conical stylus cartridge is the entry-level 500 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM510CB is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. Includes mounting hardware.

Product Features

Frequency Response 20-20,000 Hz

Channel Separation 25 dB (1 kHz)

Vertical Tracking Force 1.8-2.2 g (2.0 g standard)

Stylus Construction Bonded round shank

Recommended Load Impedance 47,000 ohms

Output 5.0 mV (at 1 kHz, 5 cm/sec)

Channel Balance 1.5 dB (1 kHz)

Stylus Shape 0.6 mil conical

Cantilever Aluminum pipe

Mount Half-inch
