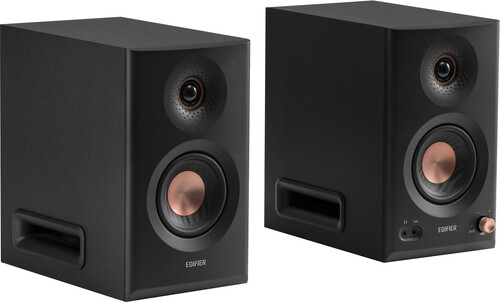

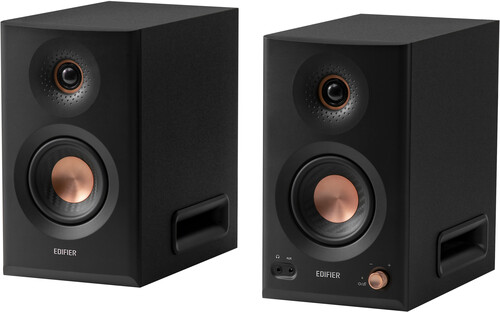

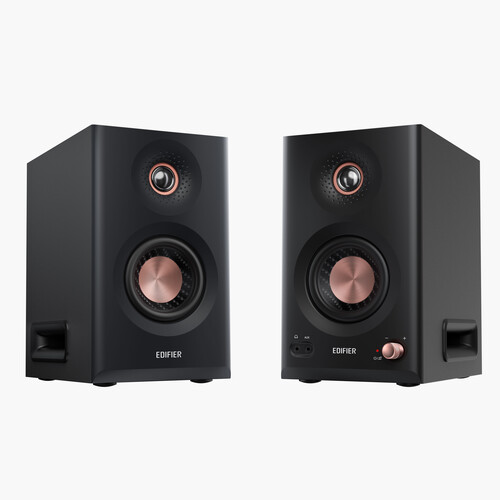

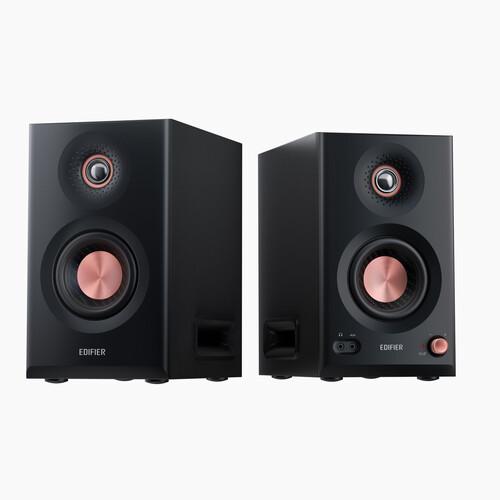

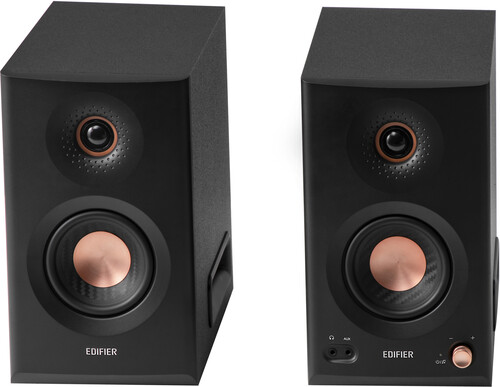

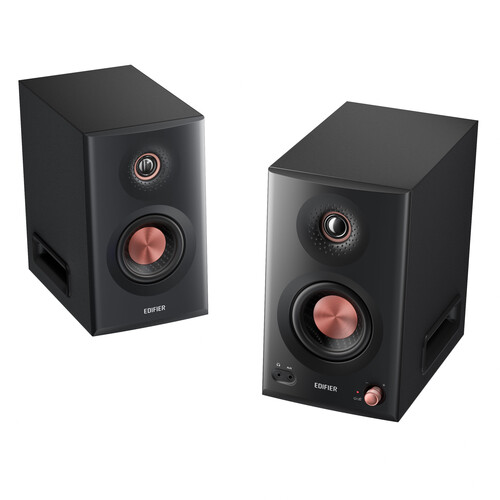

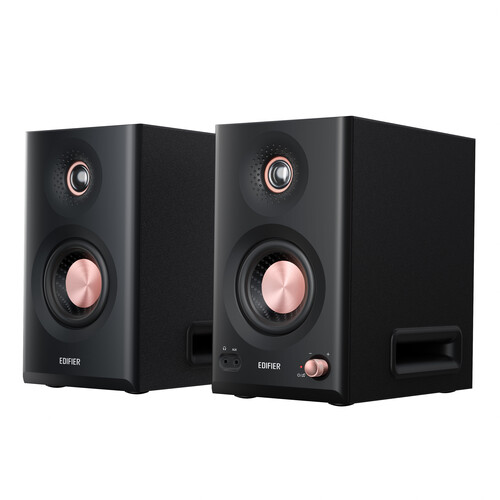

MR5 2.0 Monitor Speaker System

Studio-quality Sound Performance

• Patented acoustic architecture with 5”bass drivers, 3.75”mid-range drivers, and 1”silk dome tweeters
• Full digital signal processing and three-way active crossover
• Flat response from 46Hz to 40kHz for honest sound reproduction
• Dimpled tweeter waveguide for a flat, extended high-frequency response, clear accurate sound reproduction, and consistent sound quality across a wider listening area.
• Delivering 110W (RMS) total output power and SPL up to 101dB (@1m), suitable for near-field listening and powerful enough to fill a standard living room
• Hi-Res Audio certified for the reproduction of high-resolution audio signals transmitted through cables
• LDAC supported, Hi-Res Audio Wireless certified for reproduction of highresolution audio via Bluetooth
• Rear knobs and the mobile app providing multiple settings for room compensation, to suit different room modes and achieve the optimal listening experience
• MDF cabinet to effectively reduce distortion and resonance

Rich Connectivity

• Balanced XLR an TRS inputs available for the signal transmission with low noise level and the easy connection with an audio production device and musical instrument
• RCA and AUX inputs available for simultaneous connection with more audio devices

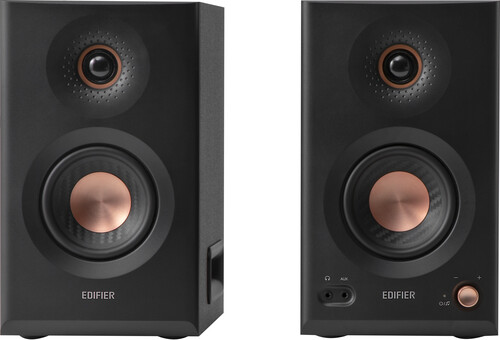

• Headphone output socket available on the front panel
• Bluetooth V6.0 audio receiver featuring stable connection and high transmission bitrate and supporting multi-point connection

Easy-to-Use

• With compact size and easy-to-connect
• Multi-function knob on the front panel for power-on/off, volume adjustment, and sound effect switch
• Works with EDIFIER ConneX Mobile app for sound effect switch, EQ customization, room compensation settings, user manual, etc.

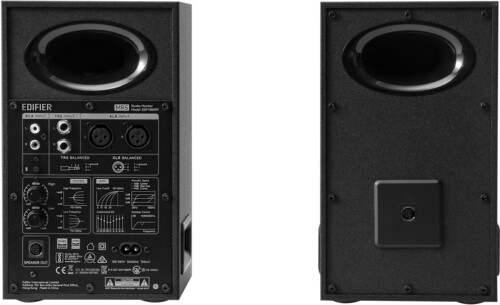

Acoustic Tuning by Rear Knobs

High frequencies: Rotate the High control counter-clockwise or clockwise to attenuate (0 to -6dB) or boost (0 to +6dB) frequencies above 10kHz.

Low frequencies: Rotate the Low control counter-clockwise or clockwise to attenuate (0 to -6dB) or boost (0 to +6dB) frequencies below 125Hz.

Acoustic Tuning by EDIFIER ConneX App

Low cutoff: Set the cut-off frequency (20Hz to 100Hz) of high pass filter to attenuate frequencies lower than the specified frequency at a selected slope (-6, -12, -18, or -24 dB/octave). Adjust the setting to match your room's acoustics and the connected subwoofer if any.

Acoustic space: Adjust the setting to compensate for mid and bass boost, which varies with speaker placement and room size, 0dB for being in the middle of the room and -4dB for being in the corner. The closer the speaker is to a wall or corner, the smaller the value is to be set.

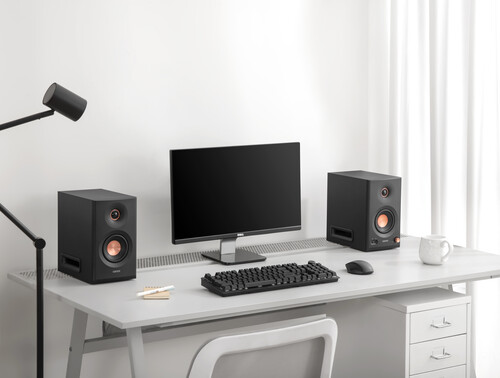

Desktop control: When the speaker is placed on a desktop, the surface will reflect low frequencies around 200Hz, causing a boost in these frequencies. Enable the feature to compensate for this boost and mitigate its effects.

Specifications:

• Type: Pair
• Colors: Black
• Output Power: 110W (Class D Amplifier)
• Trebble Driver: 1" Silk Dome
• Mid-range Driver: 3.75 PP cone
• Bass Driver: 5" Paper cone
• Trebble Waveguard: Dimpled
• Frequency Response: 46-40kHz
• Peak SPL (@ 1M): 101dB
• Hi-Res Audio Certified: Yes
• Hi-Res Audio Wireless Certified: Yes
• Room Compensation: Acoustic Space, Low cut-off, Desktop control, High frequency, Low frequency
• Physical Interface: Balanced Analog XLR, Balanced 1/4-inch TRS, Unbalanced RCA, 1/8-inch stereo (AUX)
• Headphone Output: 3.5mm
• Bluetooth Version: V6.0
• Multi-point Connection: Yes
• Controls: Volume (Power, Sound mode switch), Bluetooth function button, High frequency, Low frequency
• Enclosure: MDF
• Dimensions (W x H x D): 159mm x 264mm x 280mm (Active Speaker), 159mm x 264mm x 257mm (Passive Speaker)
• Mobile App: EDIFIER ConneX App
• Dimensions: 6.25 x 10.5 x 10.25” (per speaker)

Box Contents: MR5, Power cable, Speaker connecting cable, 3.5mm to RCA audio cable, 3.5mm to 3.5mm audio cable, Quick start guide, Important safety instructions
