Specification:

Input port and specifications

• 1xUSB-C Male: USB-C GEN 1 standard with a transmission rate of 5Gbps; DP1.4, HDCP2.2, supports PD3.0 protocol, data transfer and video functions, PD charging;
• 1xUSB-C Female: supports PD 3.0 protocol with a maximum charging power of 20V5A, powered by a power adapter; 4 output ports and standard
• 2xUSB3.0 A Female: USB3.0 standard with a maximum transfer rate of 5Gbps, compatible with USB2.0/1.1 standards;
• 1xHDMI Female: conforms to HDMI 2.0, HDCP 2.2, HDR10/3D, bandwidth up to 18Gbps, resolution supporting up to 4Kx2K@60Hz (specifically, compatible with other models at 140Hz).
• Product accessories: None
• Power requirements: Powered by the device or PD (with 5W of power deducted during PD charging, with a maximum charging power of 95W)
• Product power consumption A1: No load ≈ 330 mA, insert HDMI ≈ 400 mA, A2: No load ≈ 195 mA, insert HDMI ≈ 300 mA,
• Video formats: RGB 8/10/12 bpc; YCbCr4:4:4, YCbCr4:2:2, and YCbCr4:2:0 8/10/12 bpc;
• Audio formats: 8-channel LPCM, compressed audio (AC-3, DTS), HBR audio;
• Audio sampling rate up to 192 kHz/24 bits;
• USB ports with current limit: No PD connection, 2 USB ports with a total current limit of 2A
• Installing WIN7/XP requires manually installing the network card driver; other systems can use it without a driver.
• Supported systems: Windows 10/8.1/8/7/XP; Linux; MAC OS; iOS; Android;
• Operating temperature: 0°C~40°C
• Storage temperature: -20°C to 60°C
• Measured temperature: Environment 25°C/humidity 58%, (full load operation) housing

More Features:

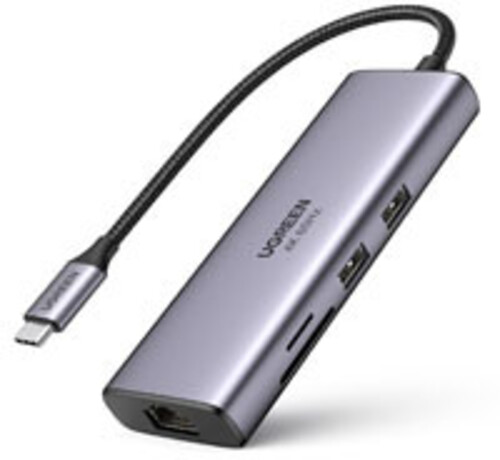

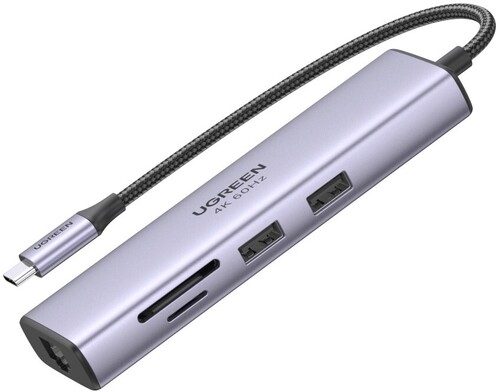

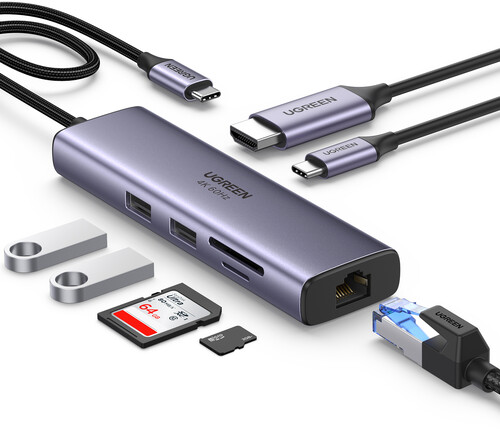

• 7 in 1 USB-C Hub: This USB C ethernent hub turns a single USB-C port into 7
• Stable Gigabit Ethernet Connection: USB C hub comes with Gigabit RJ45
• 4K HD Visuals: USB C Dock is equipped with a 4K@60Hz HDMI port. Enjoy visually stunning movies, high-definition online meetings, or extend your display for incredibly appealing presentations.
• PD 100W Fast Charging: Support up to 85W USB C pass-through charging via
• Fast Data Transfer: Connect various peripheral devices like (wireless or wired)
